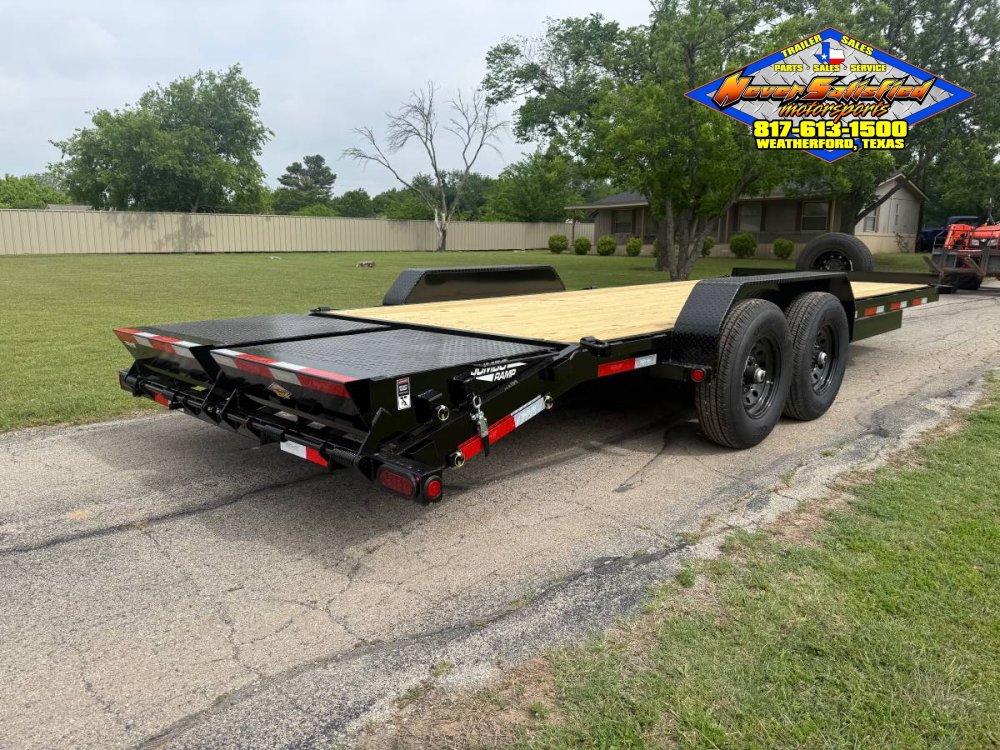

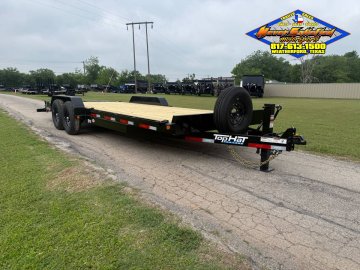

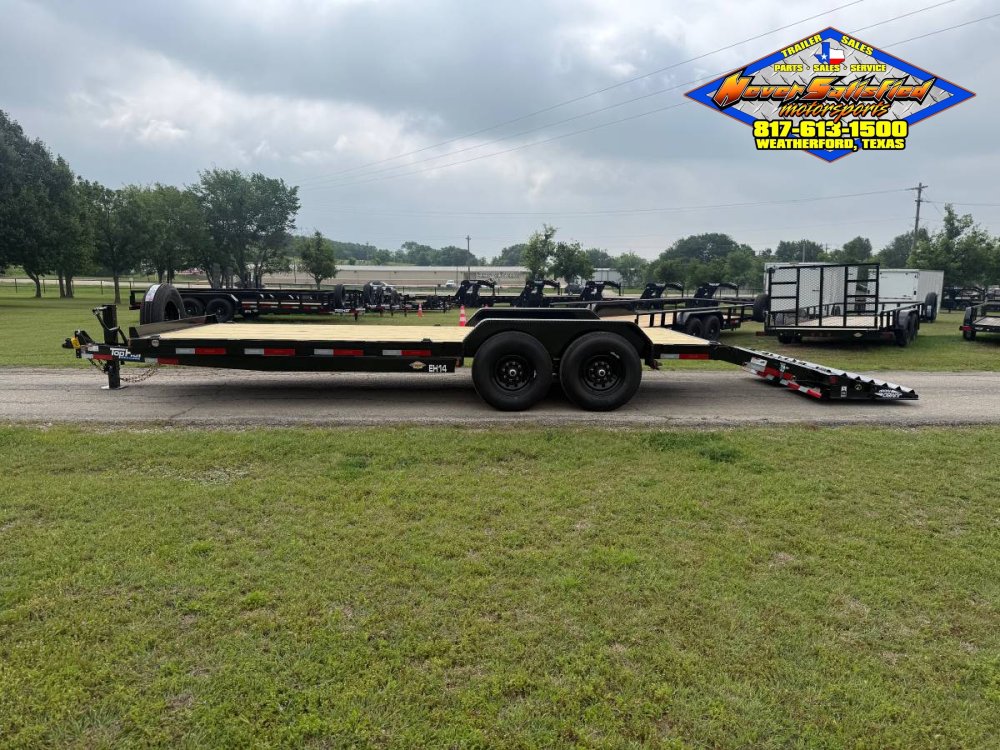

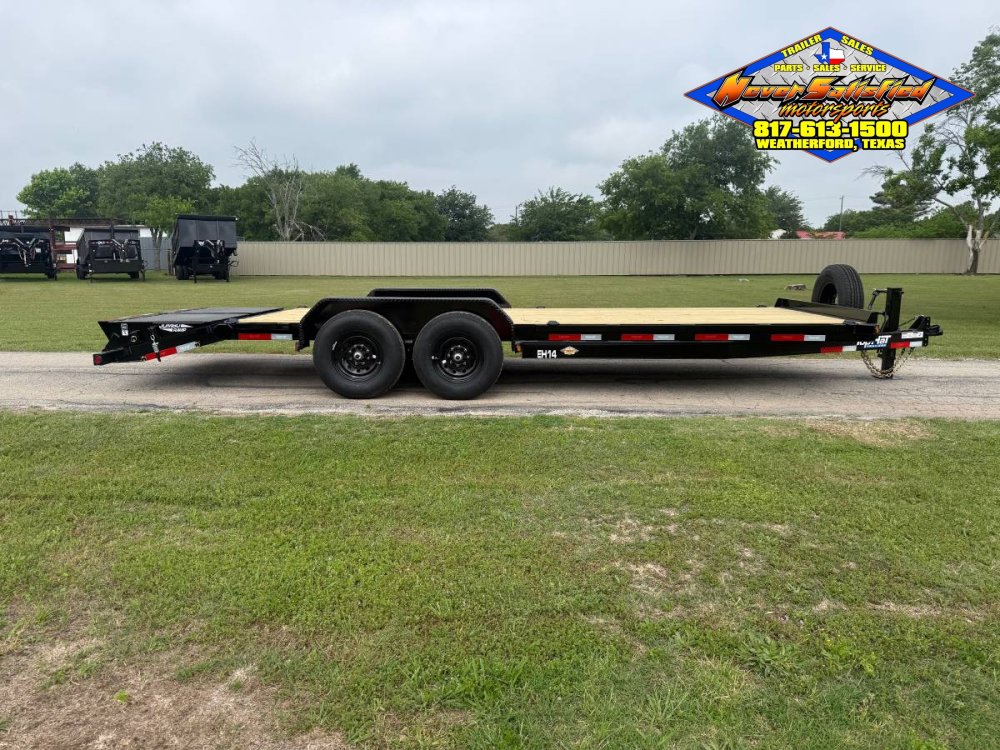

2027 TOP HAT 83" X 24' EQUIPMENT HAULER WITH JUMBO RAMPS AND SPARE, 14K-GVWR

Go Back

Trailer Specs

Stock Number: 66687

VIN: 4R7BU2426VN266687

Condition: New

Year: 2027

Manufacturer: TOP HAT INDUSTRIES, INC.

Model: EH14-24X83-14E-F

Weight (lbs): 3,370 lbs

Length: 24'

Width: 83"

Height:

GVWR: 14,000

Features: Mini Jumbo Ramps, Spare Mount, Spare Tire, Tandem Axle, Wood Floor

2027 TOP HAT 83" X 24' EQUIPMENT HAULER WITH JUMBO RAMPS AND SPARE, 14K-GVWR

$7,550

Financing As Low As
$547.48/mo

Stock #: 66687

Status: Available

Location: Weatherford, TX

(817) 613-1500

Reserve Now Have a Question?

Financing Available

Request a Quote Apply for Financing

Payment Calculator

Loan Amount ($):

Interest Rate (%):

Loan Term (Months):

Monthly Payment: $0.00

This calculator is an estimate only! Payment, interest rate and terms may differ!

Trailer Location

Weatherford

1020 Peaster Hwy, Weatherford, TX 76088

(817) 613-1500
Get a Quote

Description Standard Equipment ST235/80R/16 LRE Tires on 8-Hole 2-7000# Dexter Axles w/Electric Brakes Axles 1/2 Cambered w/EZ Lube Hubs 2 5/16″ DEMCO Easy Latch Adjustable 5/Position Coupler 10000# Drop Leg Jack HD Diamond Plate Fender (Double Broke) Treated Pine Floor Break Away Unit w/Charger Suspension: Slipper Spring DOT Reflective Tape Sealed Flush Mount LED Lights w/Wiring Harness Spare Rack Color: Stock Frame Structure Frame & Tongue 6″ Channel Thru 24′ Frame & Tongue 8″ Channel 26′-32′ Front Bumper w/Side Gussets Crossmembers: 3″ Channel 16″ OC Stake Pockets w/3/8×2 Rubrail Crossmembers: 3″ Channel 16″ OC Stake Pockets w/3/8×2 Rubrail 5/8″ D-Rings (6) 2′ Treadplate Dovetail Flush Floor Options Spare ST235/80R/16 LRE on 8-Hole Weld-on D-Rings 5/8″ (Each) HD 3/16″ Drive Over Fenders 3″ Square Tube Toprail (Side Option) Fork Rack (2-6″ Channel tubes set at 46″ Outside. Driver side) Fork Rack Tubing & dimensions can be custom w/additional fee. *5′ Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks) Rear Stabalizer Jack (5K Top Wind Pipe Mount) 5′ Fold-up Channel Ramp w/Adjustable Knees & Spring Assist **3′ Self Cleaning Cleated Dovetail & 3′ Mini Jumbo Spring Assist Ramps (Must be 20′ or longer) 5′ XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist Above Ramp is 24″ Wide Covered w/Expanded Metal 3-4′ Dovetail ILO 2′ Dovetail 2′ Self Cleaning Cleated Dovetail ILO 2′ Treadplate Dovetail *Rear Slide-N Ramps on 16′ will be 4 1/2′. Rear Slides NA on 12-14′. **Jumbo Ramps NA on lengths less than 20′

Description

Standard Equipment

ST235/80R/16 LRE Tires on 8-Hole
2-7000# Dexter Axles w/Electric Brakes
Axles 1/2 Cambered w/EZ Lube Hubs

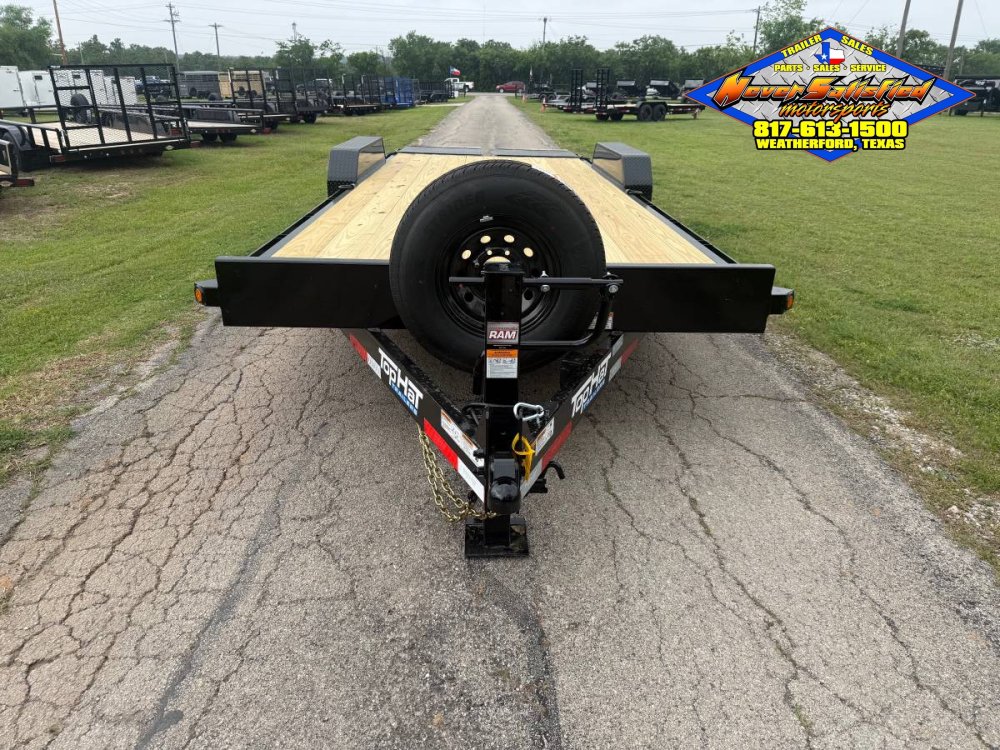

2 5/16″ DEMCO Easy Latch Adjustable 5/Position Coupler
10000# Drop Leg Jack
HD Diamond Plate Fender (Double Broke)
Treated Pine Floor
Break Away Unit w/Charger
Suspension: Slipper Spring
DOT Reflective Tape
Sealed Flush Mount LED Lights w/Wiring Harness

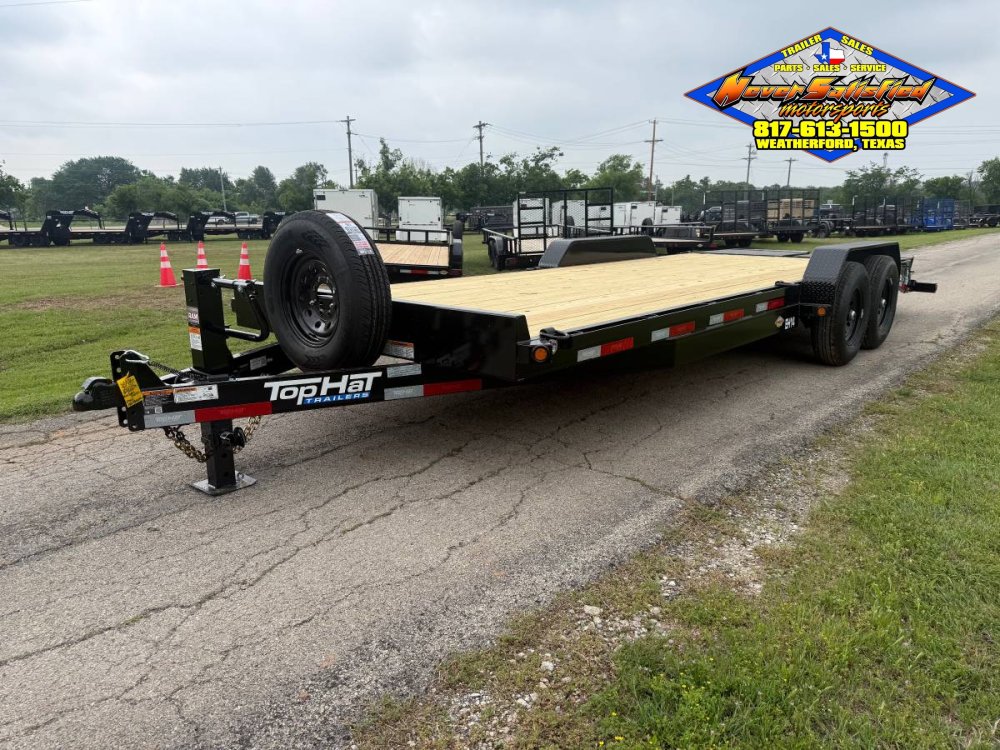

Spare Rack
Color: Stock

Frame Structure

Frame & Tongue 6″ Channel Thru 24′
Frame & Tongue 8″ Channel 26′-32′
Front Bumper w/Side Gussets
Crossmembers: 3″ Channel 16″ OC
Stake Pockets w/3/8×2 Rubrail
Crossmembers: 3″ Channel 16″ OC
Stake Pockets w/3/8×2 Rubrail
5/8″ D-Rings (6)
2′ Treadplate Dovetail
Flush Floor

Options

Spare ST235/80R/16 LRE on 8-Hole
Weld-on D-Rings 5/8″ (Each)
HD 3/16″ Drive Over Fenders
3″ Square Tube Toprail (Side Option)
Fork Rack (2-6″ Channel tubes set at 46″ Outside. Driver side)
Fork Rack Tubing & dimensions can be custom w/additional fee.
*5′ Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks)
Rear Stabalizer Jack (5K Top Wind Pipe Mount)
5′ Fold-up Channel Ramp w/Adjustable Knees & Spring Assist

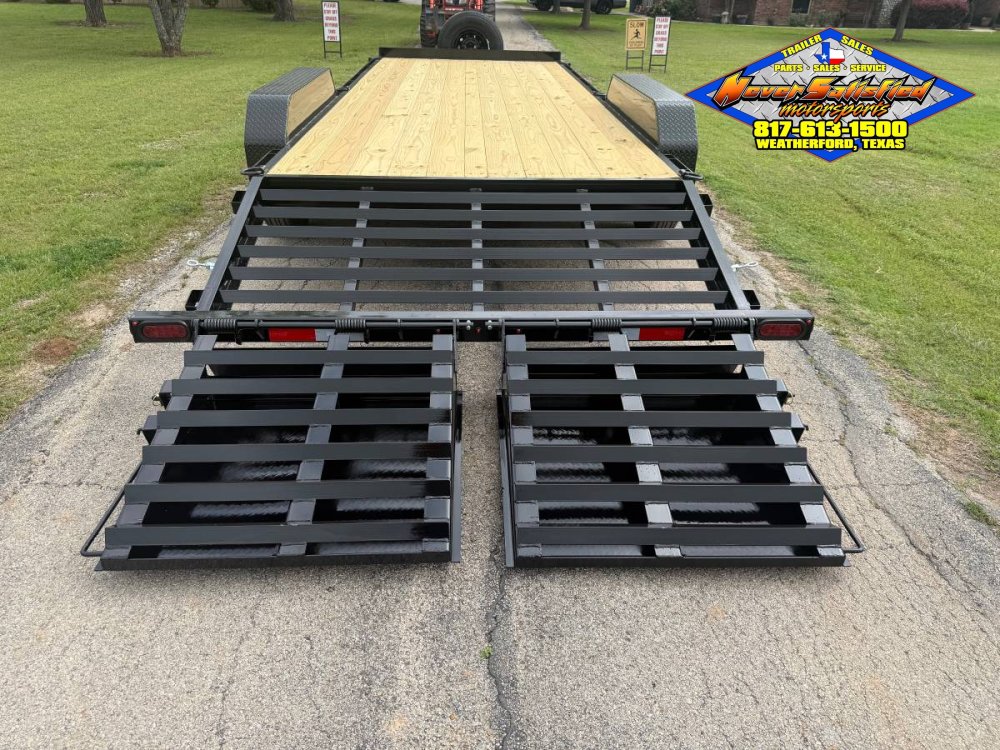

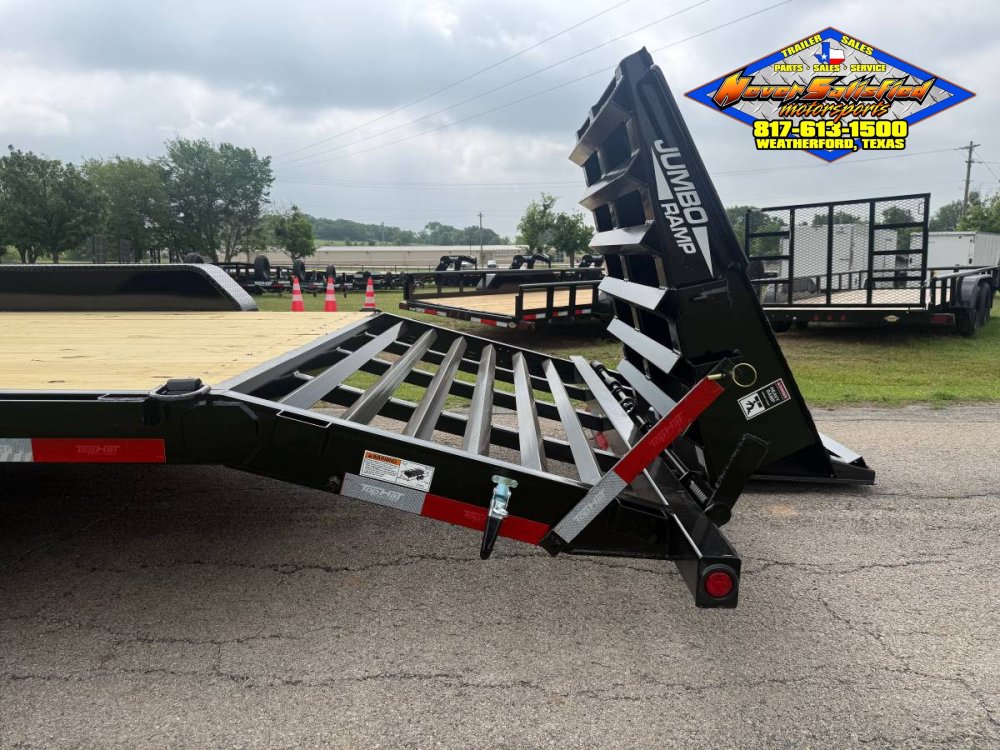

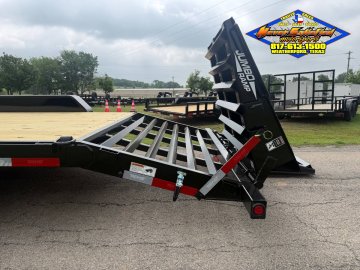

**3′ Self Cleaning Cleated Dovetail & 3′ Mini Jumbo Spring Assist Ramps (Must be 20′ or longer)
5′ XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist
Above Ramp is 24″ Wide Covered w/Expanded Metal
3-4′ Dovetail ILO 2′ Dovetail
2′ Self Cleaning Cleated Dovetail ILO 2′ Treadplate Dovetail
*Rear Slide-N Ramps on 16′ will be 4 1/2′. Rear Slides NA on 12-14′.
**Jumbo Ramps NA on lengths less than 20′
