Description
Standard Equipment
ST235/80R/16 LRE Tires on 8-Hole Dual
2-10000# Dexter Oil Bath Axles w/Electric Brakes
5 Leaf Slipper Spring Suspension
2 5/16″ Round Adjustable Coupler
Dual 10000# Drop Leg Jacks
Treated Pine Floor
Break Away Unit w/Charger
Spare Tire Rack Inside Neck (Spare Tire Optional)
Lockable Toolbox Between Risers
Winch Plate Between Risers
Wiring Harness w/Sealed LED Lights
Driver & Curb Side Steps w/Grab Handles
DOT Reflective Tape
Color: Black
Frame Structure
Frame: 12″x16# I-Beam, 19# on 32′ & Longer
Neck: 12″x16# I-Beam
Crossmembers: 3″ Channel 16″ OC Thru Frame
Side Rails: 6″ Channel
3/8×2 Flat Rubrail
Stake Pockets 24″ OC
Pipe Spools Between Each Stake Pocket
Frame to Crossmember Gussets
Anti Flex Torx Tube on 32′ & Longer
Low Profile (Crossmembers Thru Frame)
Dovetail w/Fold Over Spring Assist Ramps on +5 Models
Deck Height: 34.5″
Options ADDED
Jumbo Ramps
Toolbox 15″x15″x36″ JI

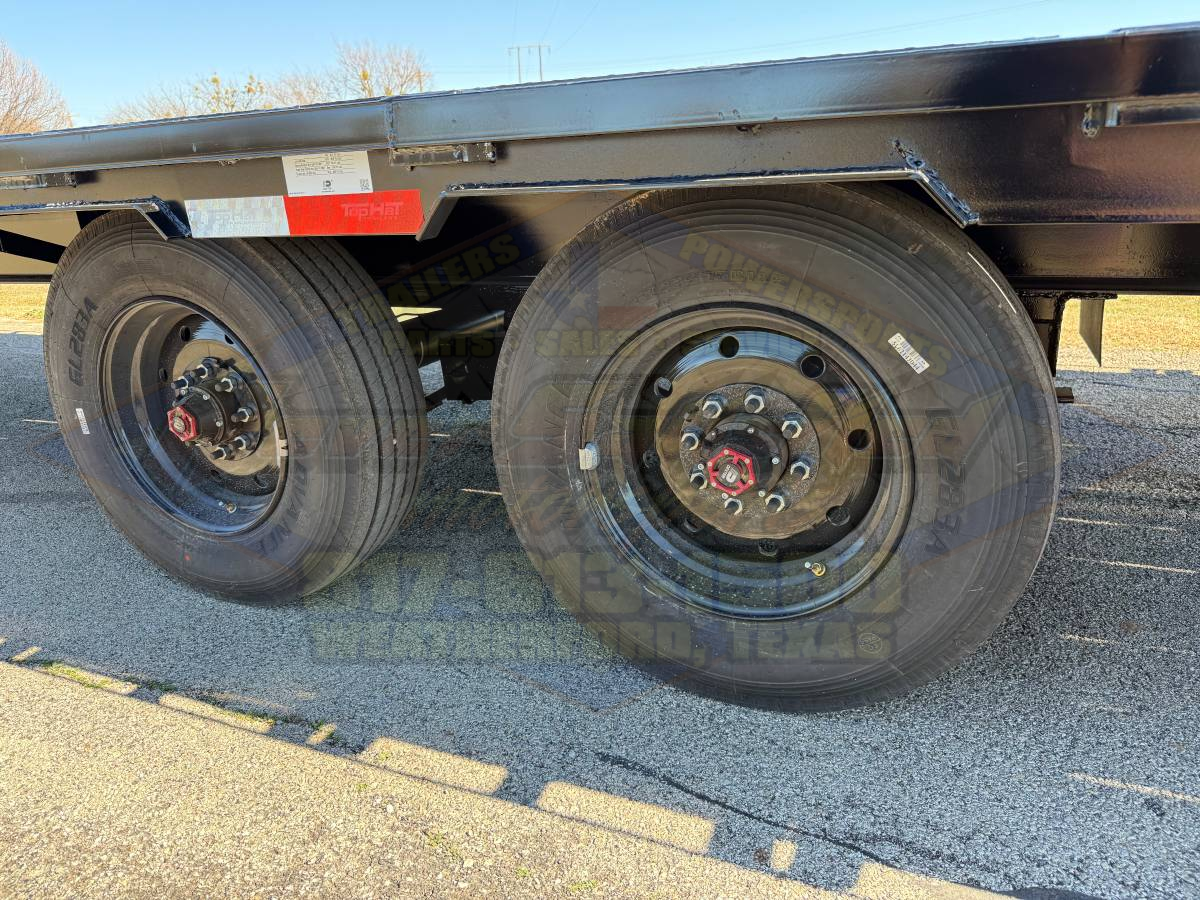

Super Singles (Converts to ST235/75R/17.5 LRJ Single Tire) Code:GN240SS
Spare ST235/75R/17.5 LRJ For Super Single
