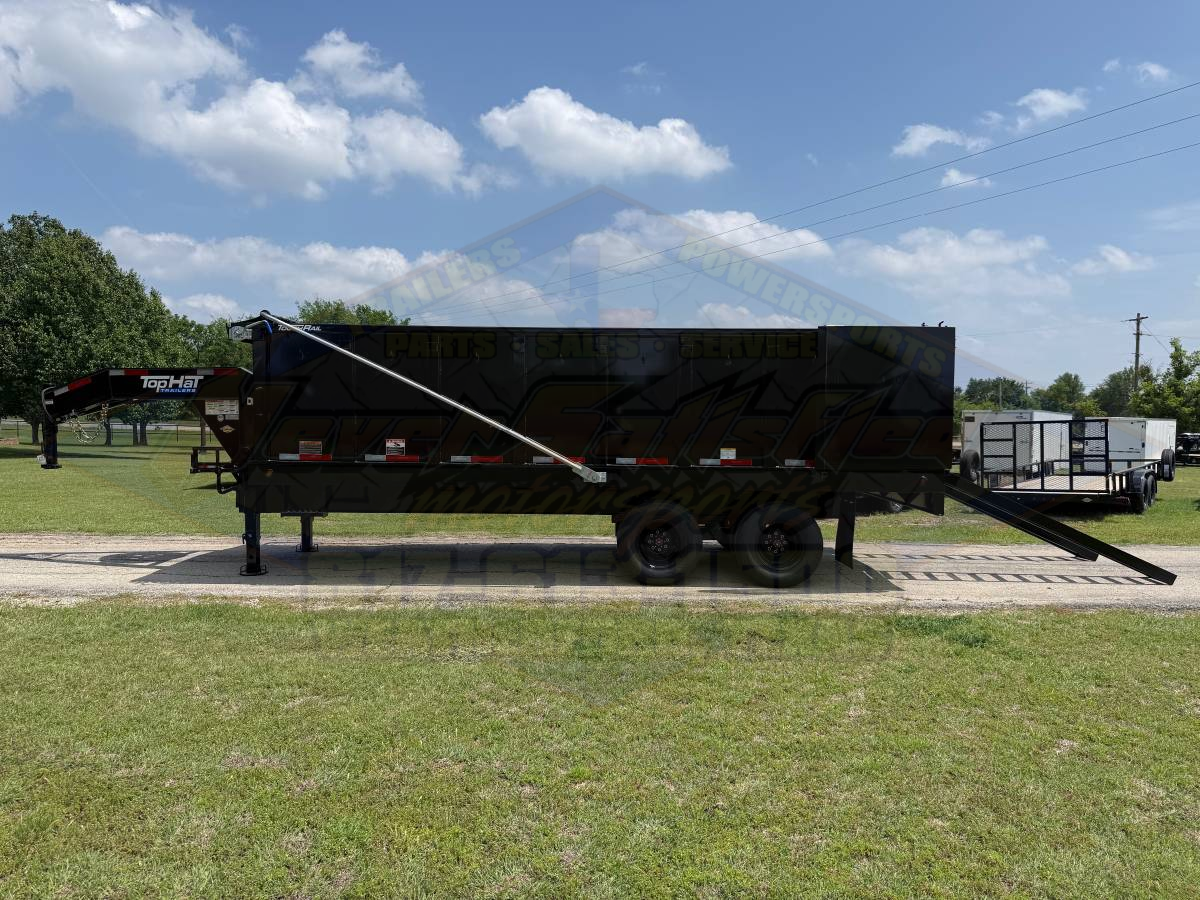

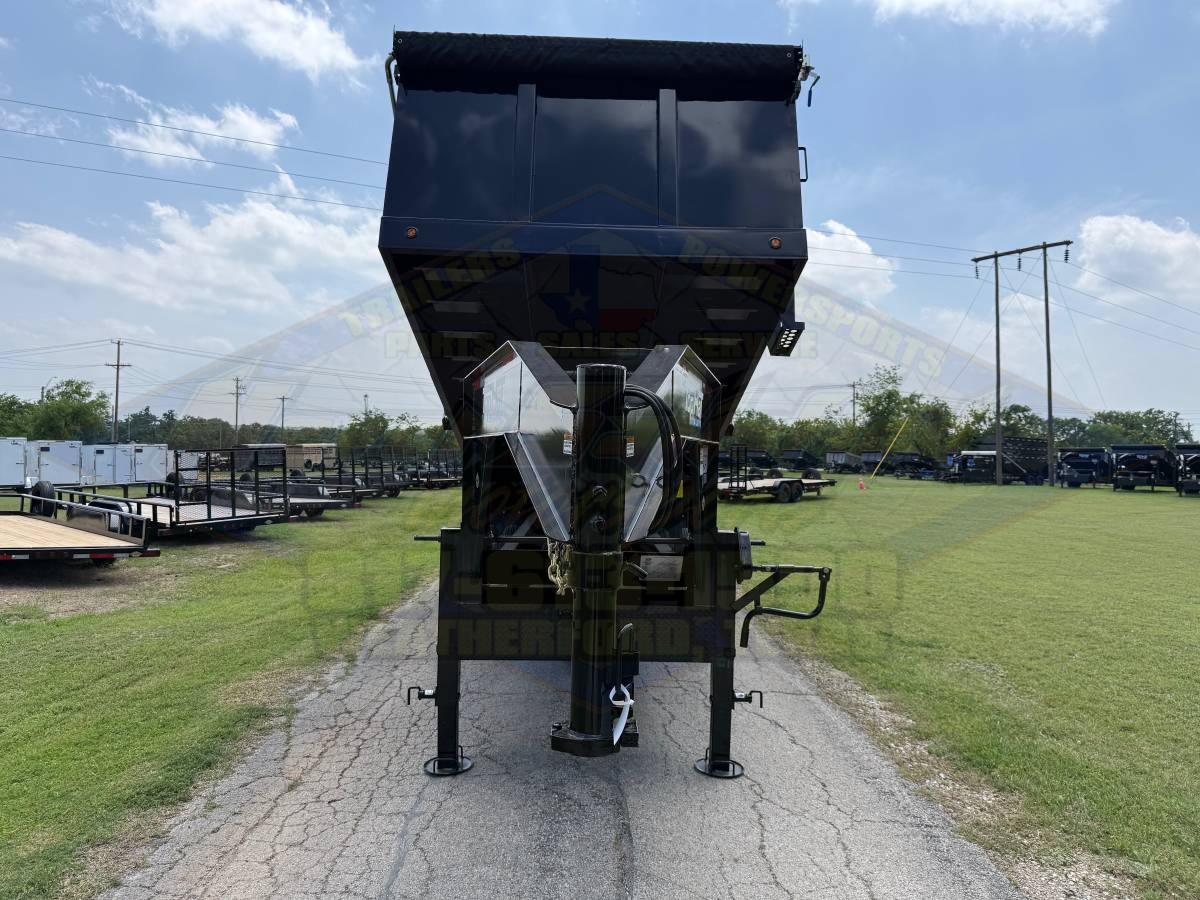

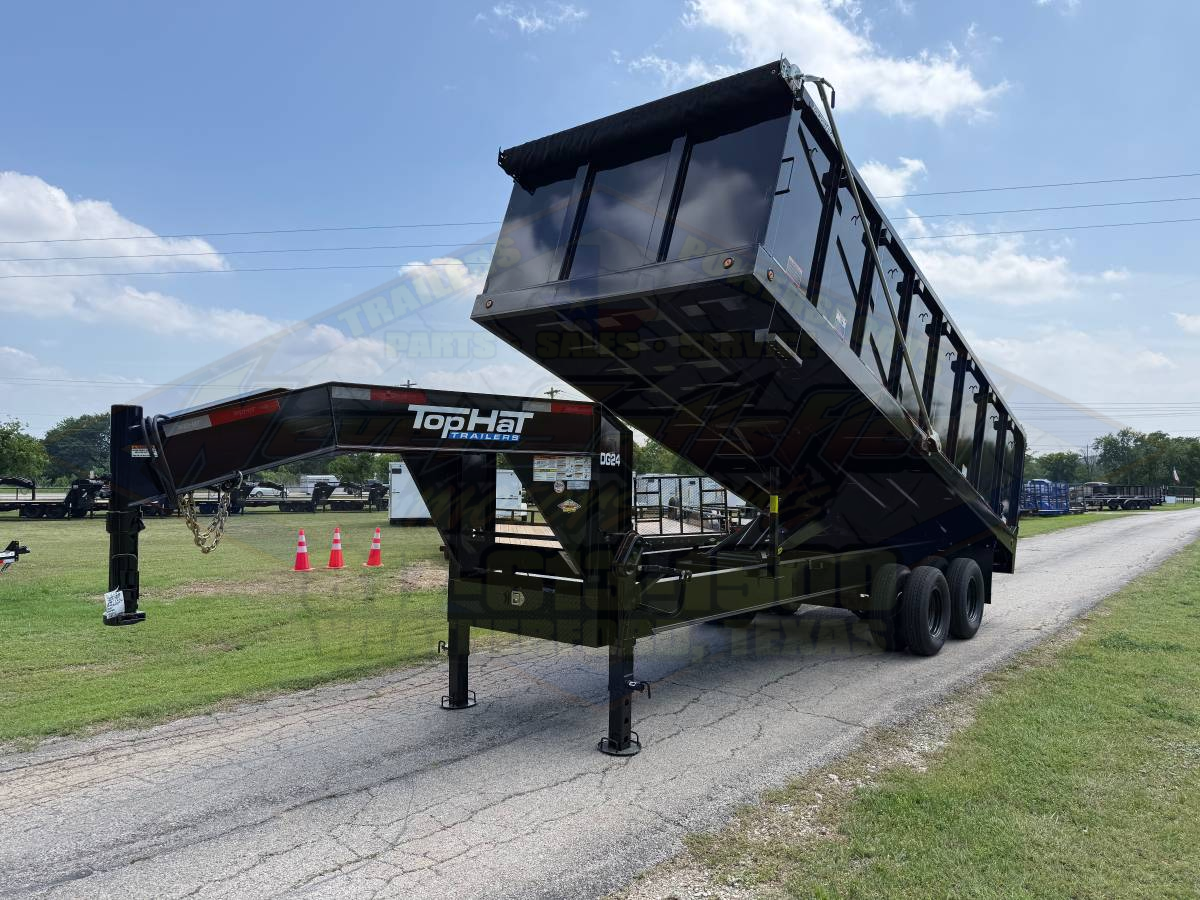

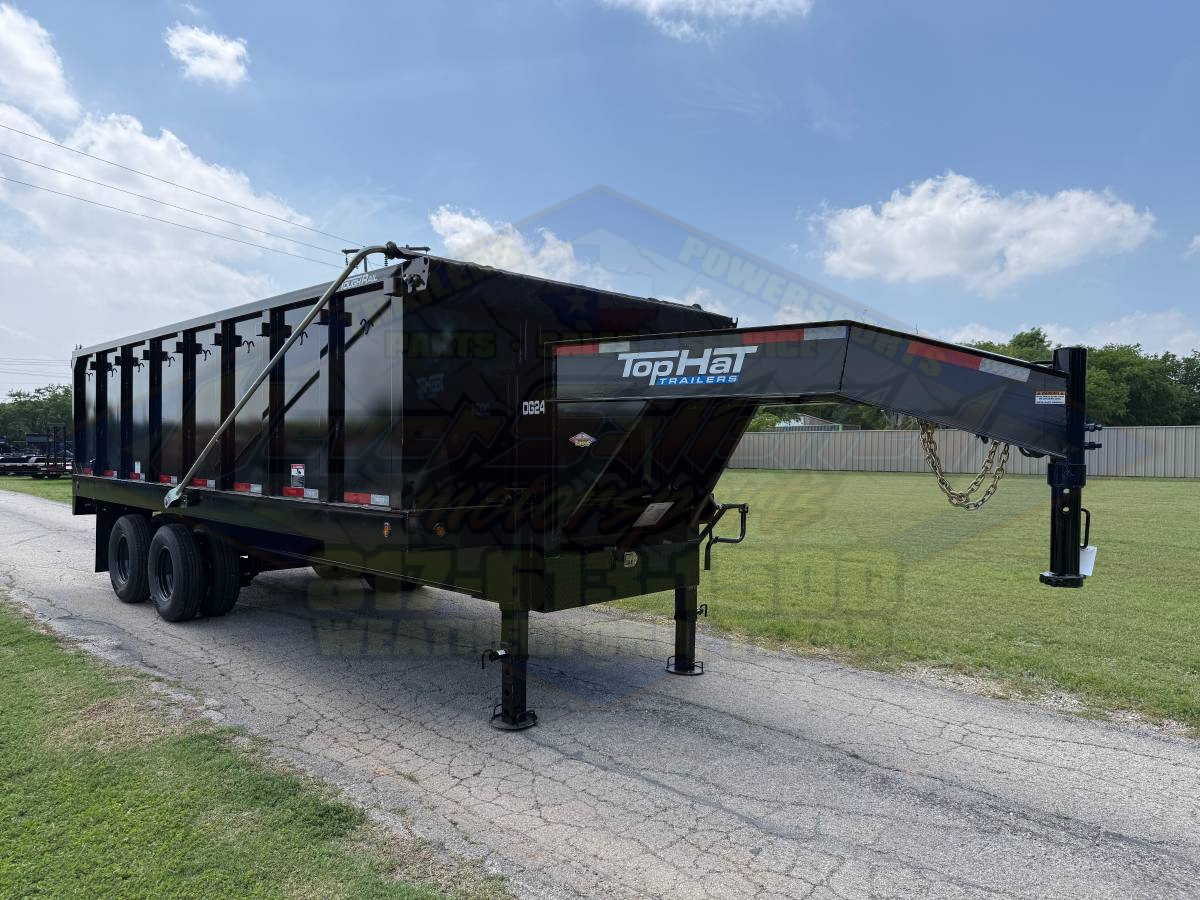

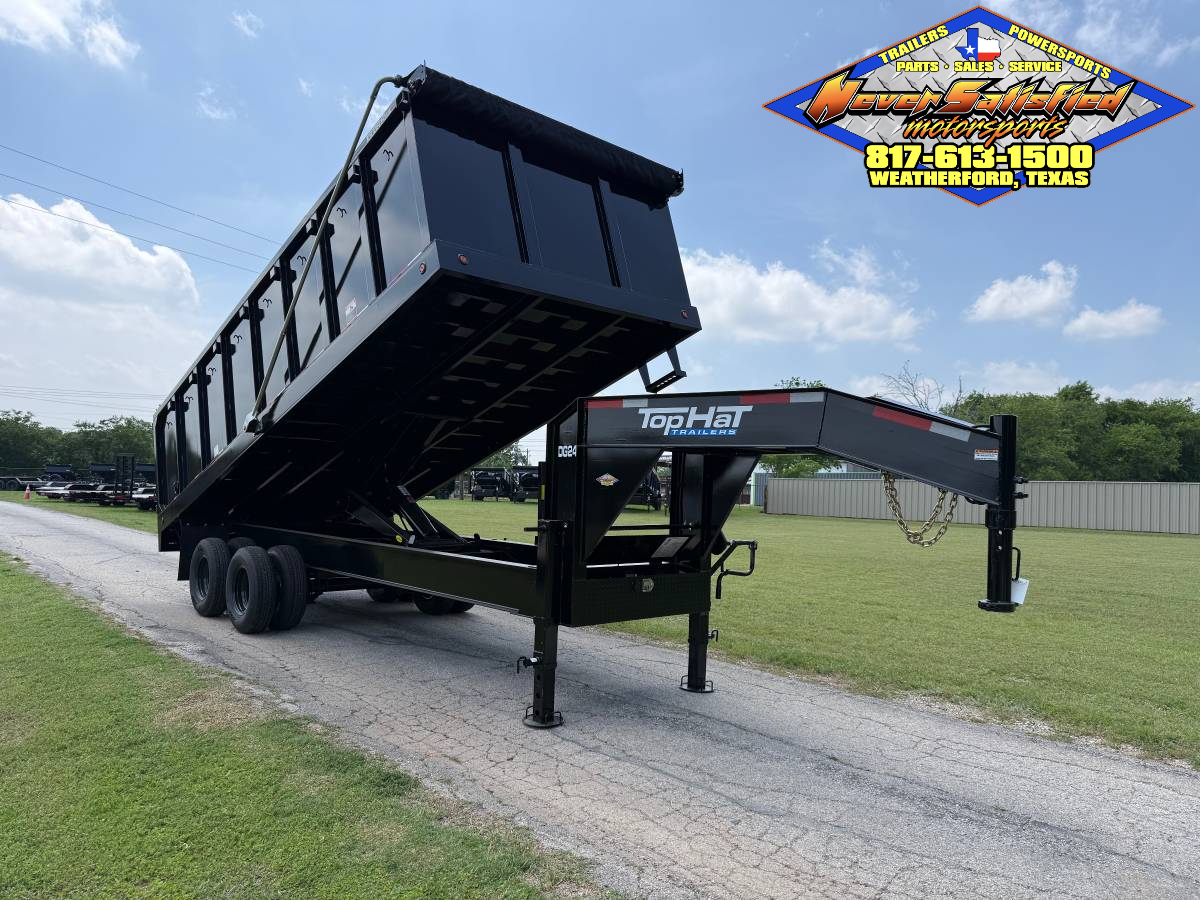

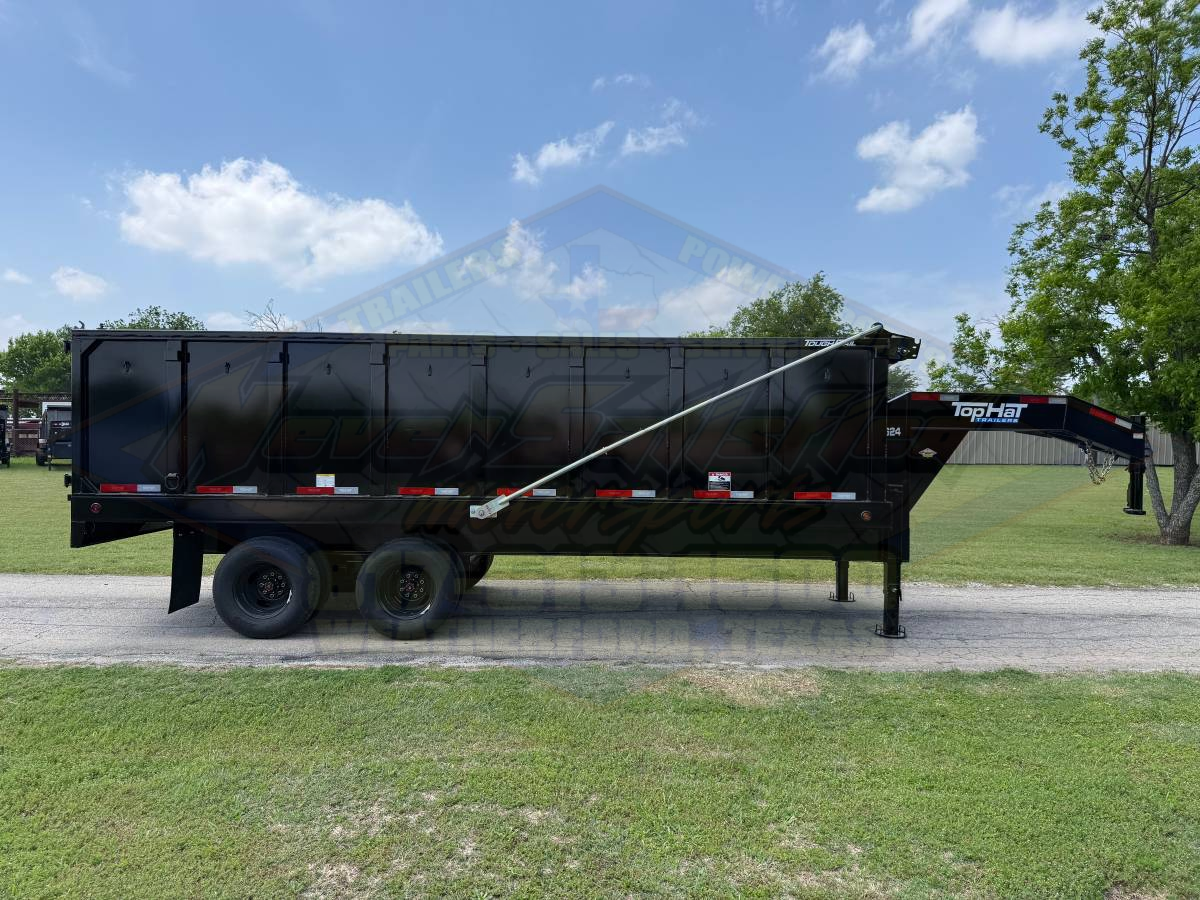

2026 TOP HAT 96″ X 20′ GOOSENECK DUMP TRAILER WITH TARP, RAMPS AND SPARE 24,000 GVWR

$ 21,000.00

Product Inquiry

2 in stock

Categories: , , , , ,

Description

ALL POSTED PRICES ON TRAILERS ARE DISCOUNTED FOR CASH OR CHECK ONLY SALES! ANY OTHER FORM OF PAYMENT THE TRAILER WILL BE SOLD AT FULL RETAIL PRICE!

24,000 GVWR

  • ST235/80R/16 LRE Tires on 8-Hole Dual
  • 2-10000# Dexter Axles w/Electric Brakes
  • Oil Bath Hubs
  • 5 Leaf Slipper Spring Suspension
  • 2 5/16″ Round Adjustable Coupler
  • Width: 91.5″ Inside Box
  • Break Away Unit w/Charger
  • DOT Reflective Tape
  • Primed & Painted Underside

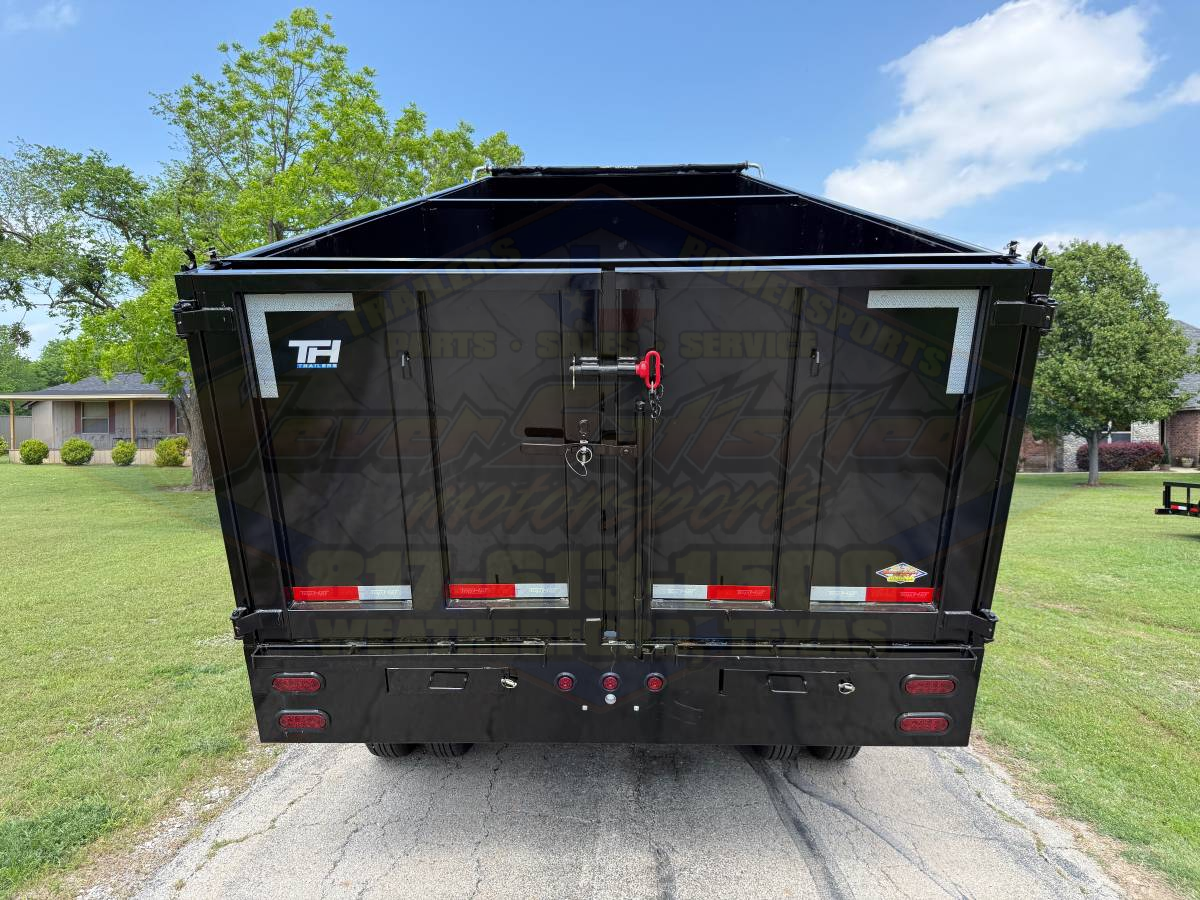

  • Dual Swing Out Doors

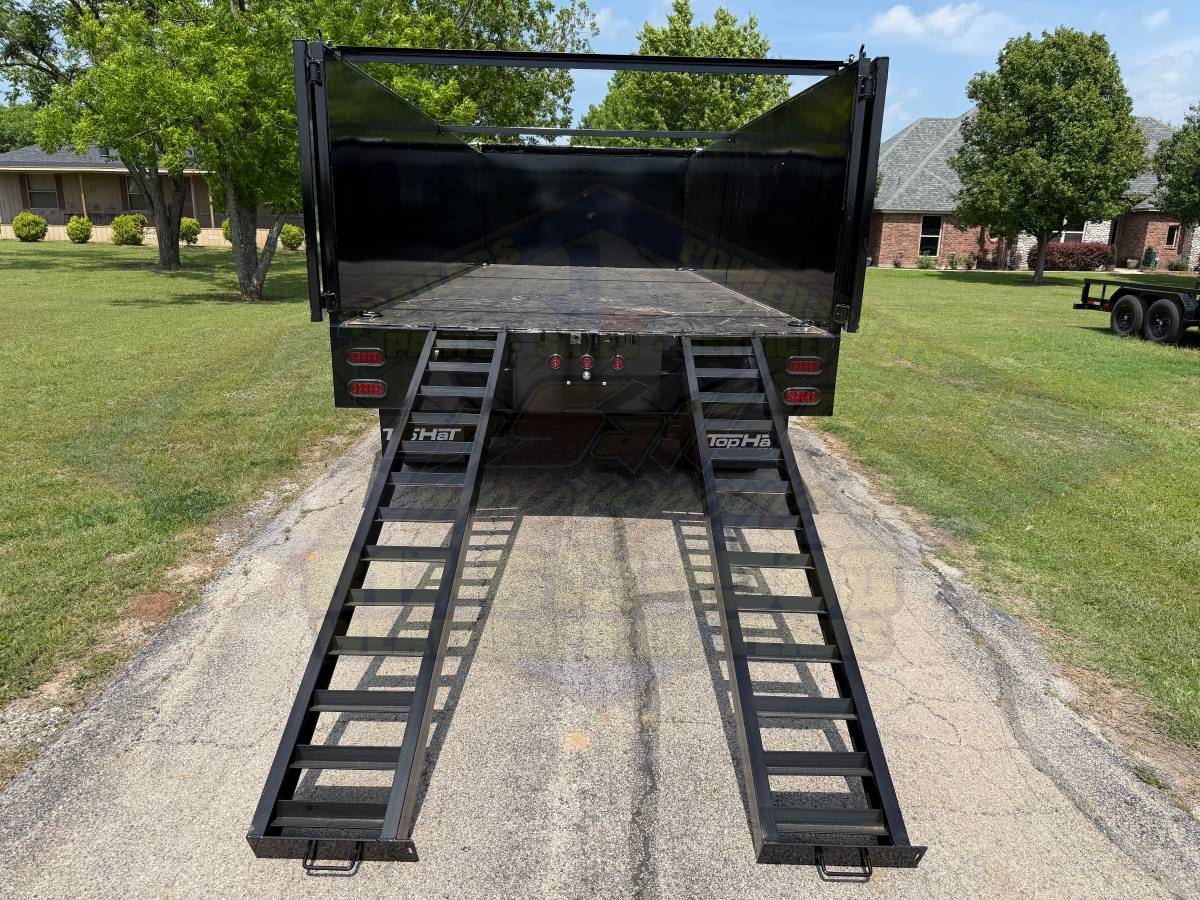

  • Ramp Pockets w/ 7 1/2′ Ramps
  • 5/8″ D-Rings in Box (4)
  • Spare Rack (Spare Tire Optional)
  • Sealed Flush Mount LED Lights
  • Wiring Harness

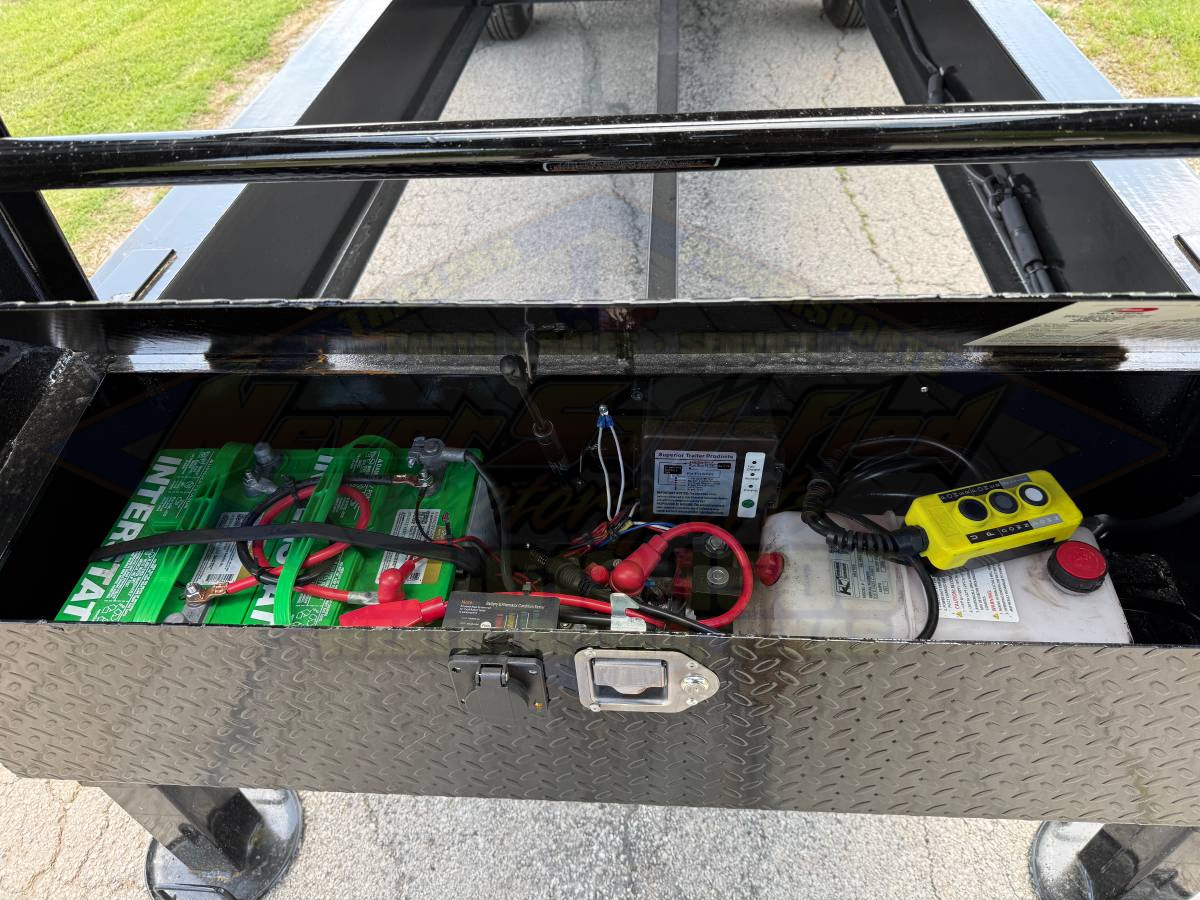

  • Lockable Battery/Pump Box
  • Crank Style Roll Tarp & Tie Downs
  • Color: Black

  • Frame: 12″x19# I-Beam
  • Neck: 12″x16# I-Beam
  • Sides: 48″ Tall 12 GA Sheet Metal
  • Floor: 7 GA Sheet Metal
  • Uprights: 24″ OC
  • Toprail: Rigid 3×2 Rectangular Tubing
  • Dump Body Frame: 8″ Channel
  • Crossmembers: 3″ Channel 16″ OC

  • DG Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp (w/Ground Level Crank Kit)
  • Motorized Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
  • 3″ ID Adjustable Pintle Ring ILO Gooseneck (Code:DP24)

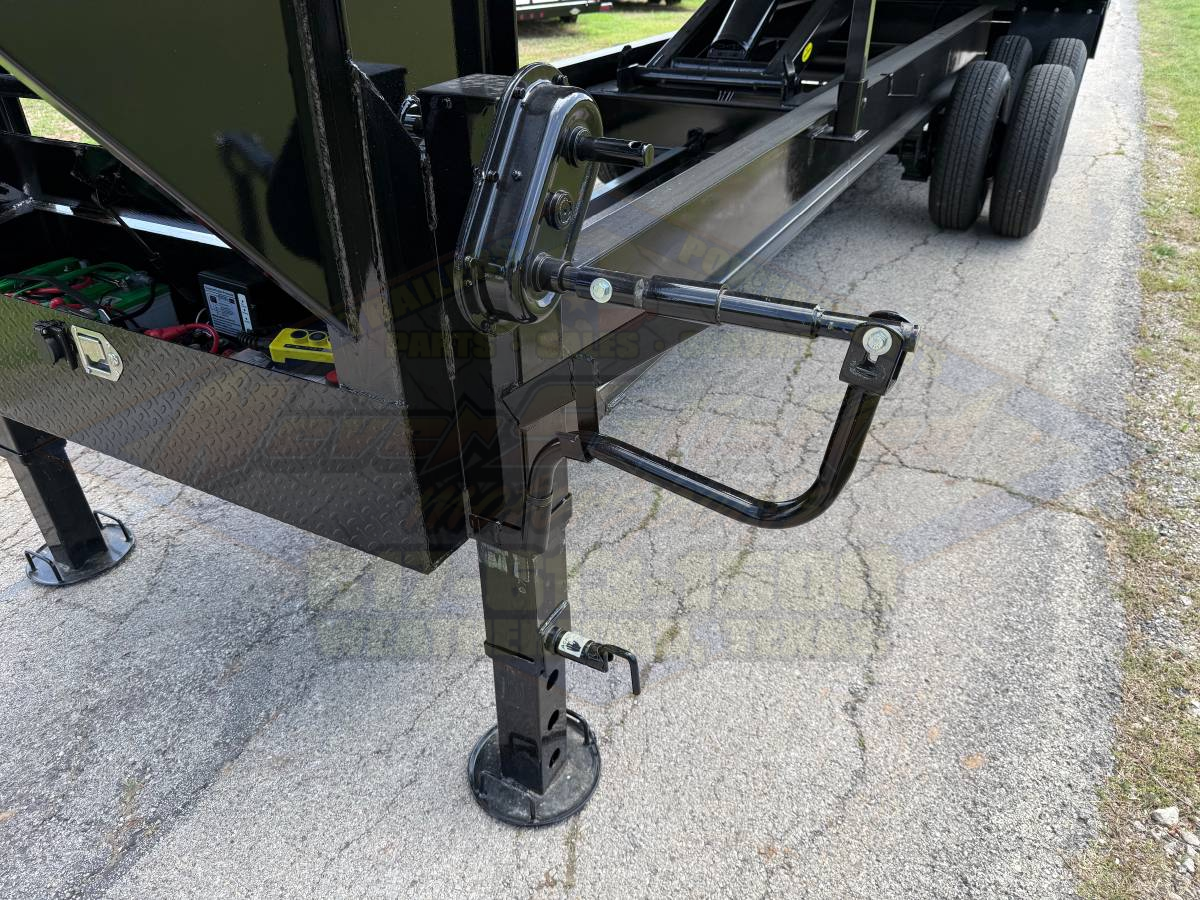

  • Dual 2-Speed Jacks
  • Dual Hydraulic 12K Jack Replacing Dual 12K Jack
  • 9″x18″ Grain Gate
  • Spare ST235/80R/16 LRE on Dually
  • Gas Engine Powered Pump in Lieu of Electric Pump
  • 12K Axles w/HDSS ILO 10K Axles (Rating Stays 24000 GVWR)
  • Solar Battery Charger
  • Super Singles (Converts to /235/75R/17.5 LRJ Single Tire) Code:DG24SS OR DP24SS
  • 2′ Tall Sheet Metal Sides

  • 620 Scissor Hoist on 16′

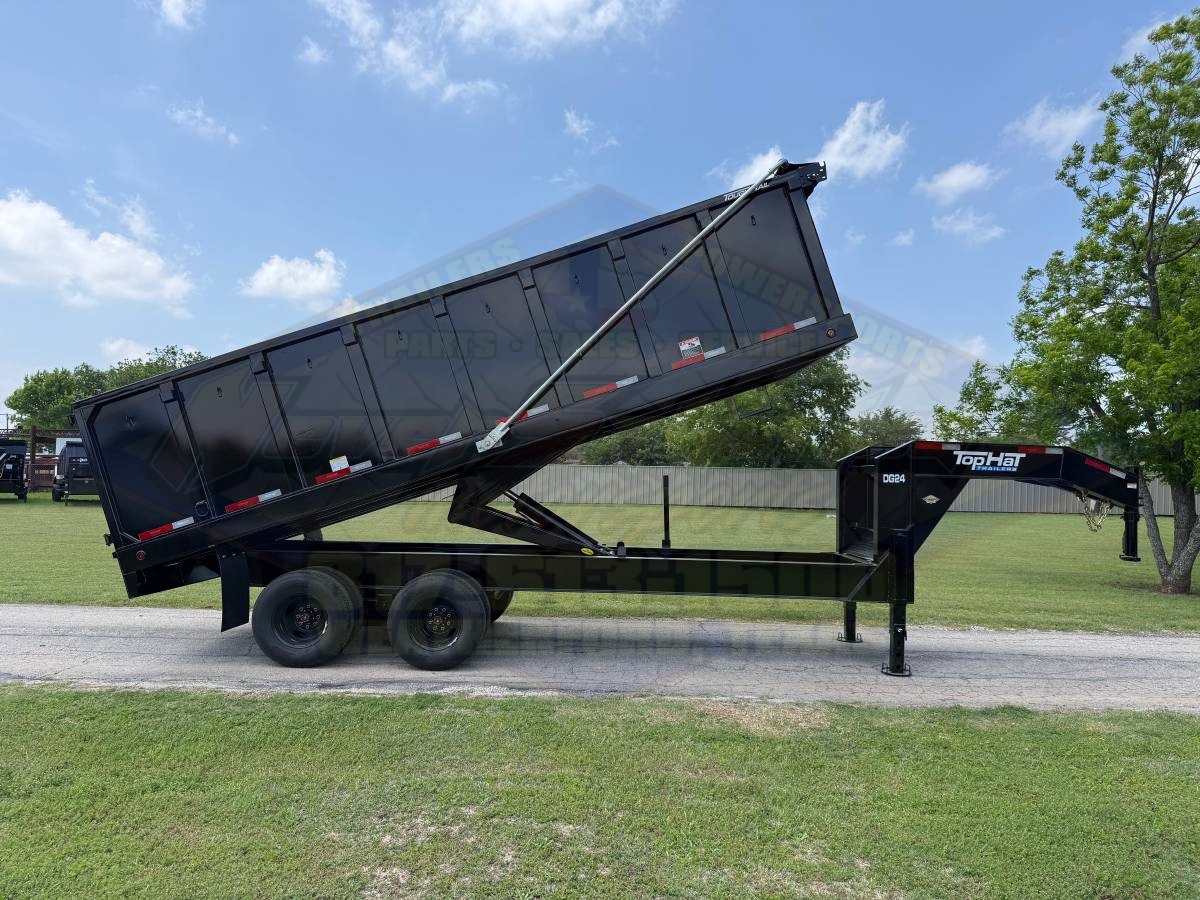

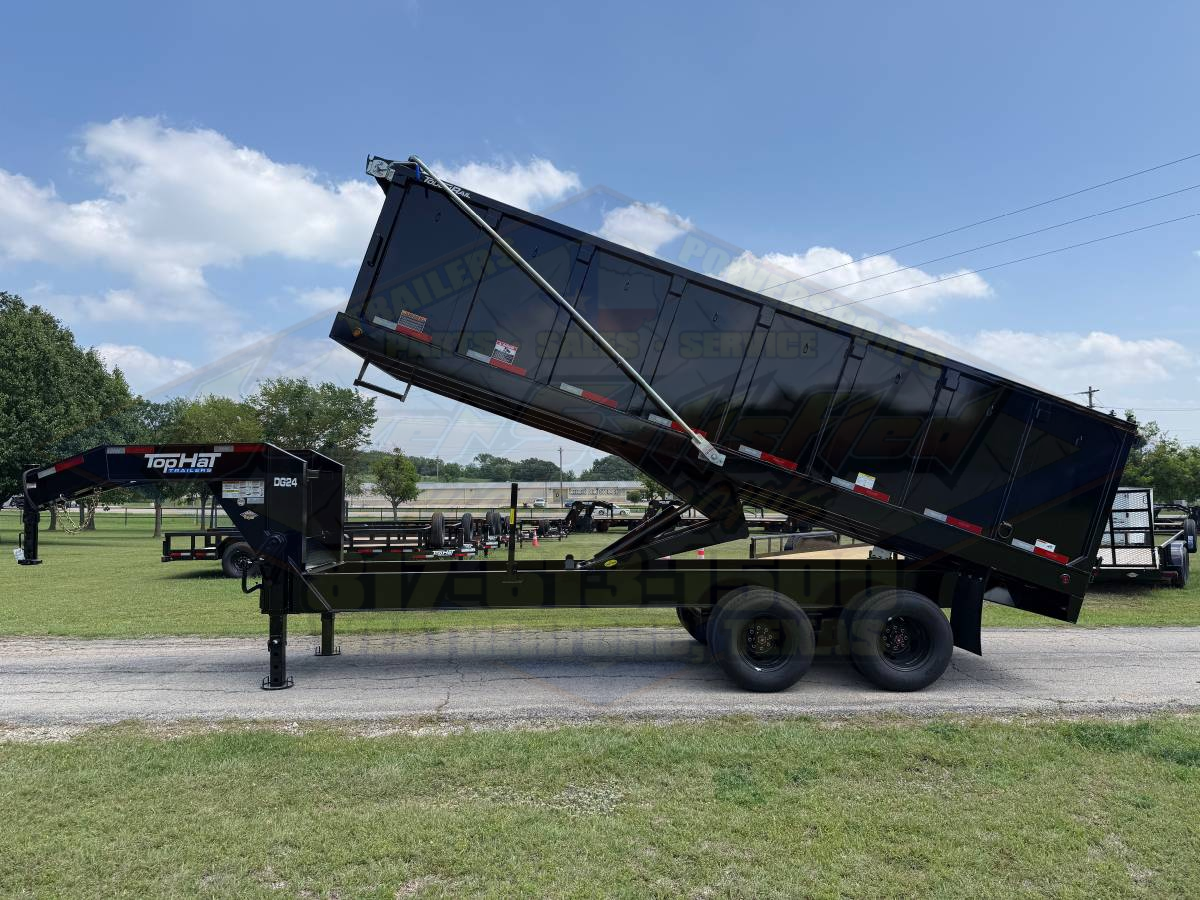

  • 630 Scissor Hoist on 20′
  • Power Up/Power Down/Gravity Down
  • Control: Pistol Grip w/10′ Cord
  • Safety Prop
  • Caulked Seams on Dump Body
  • Dual Deep Cycle 12V Marine Batteries
  • 110V-5 Amp Charger
