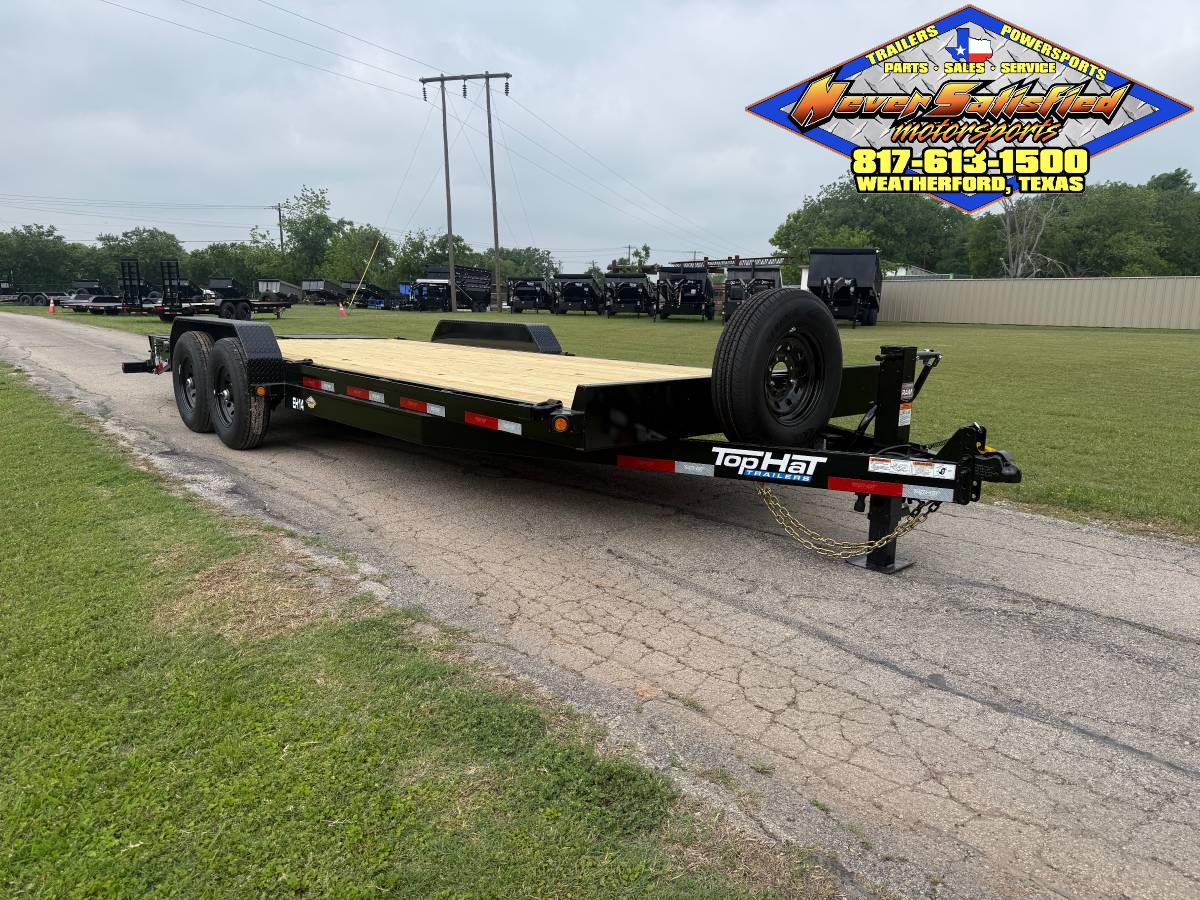

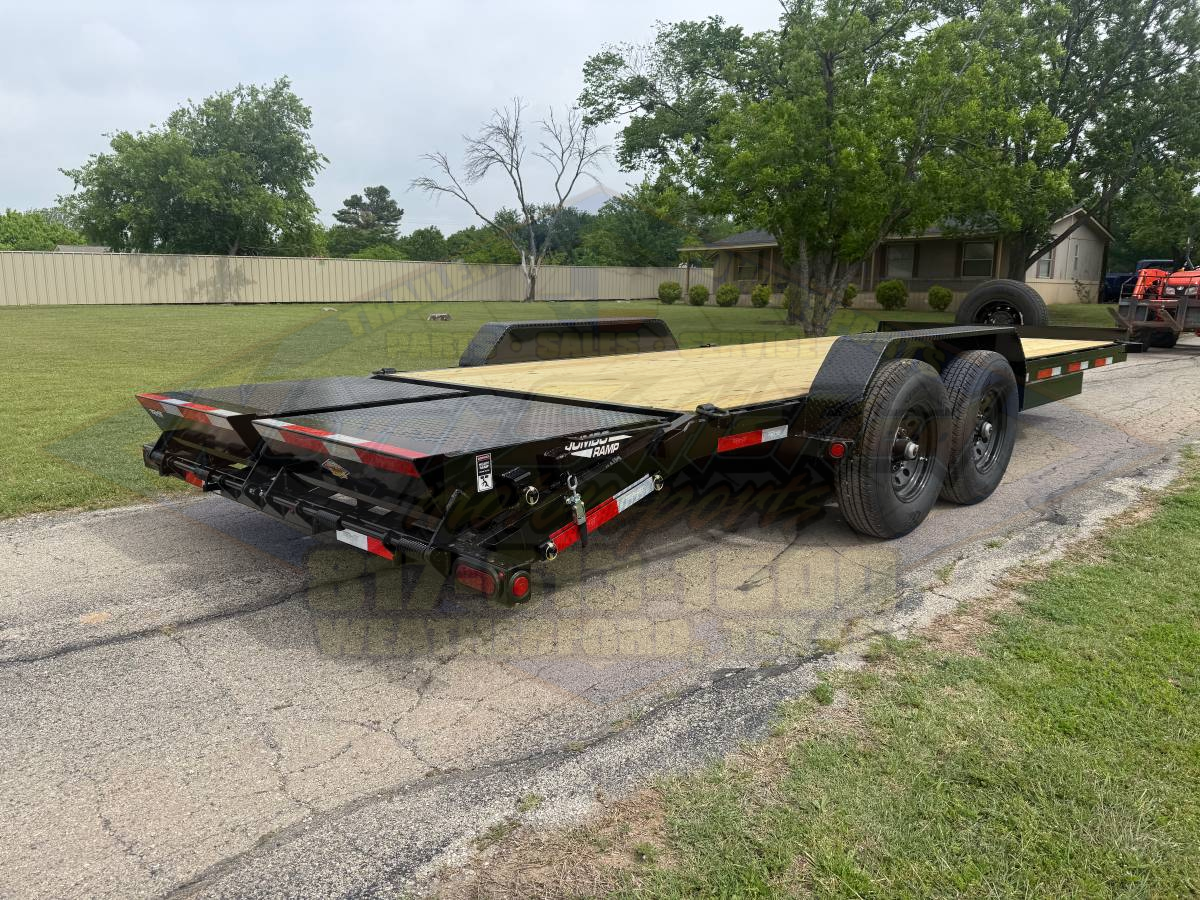

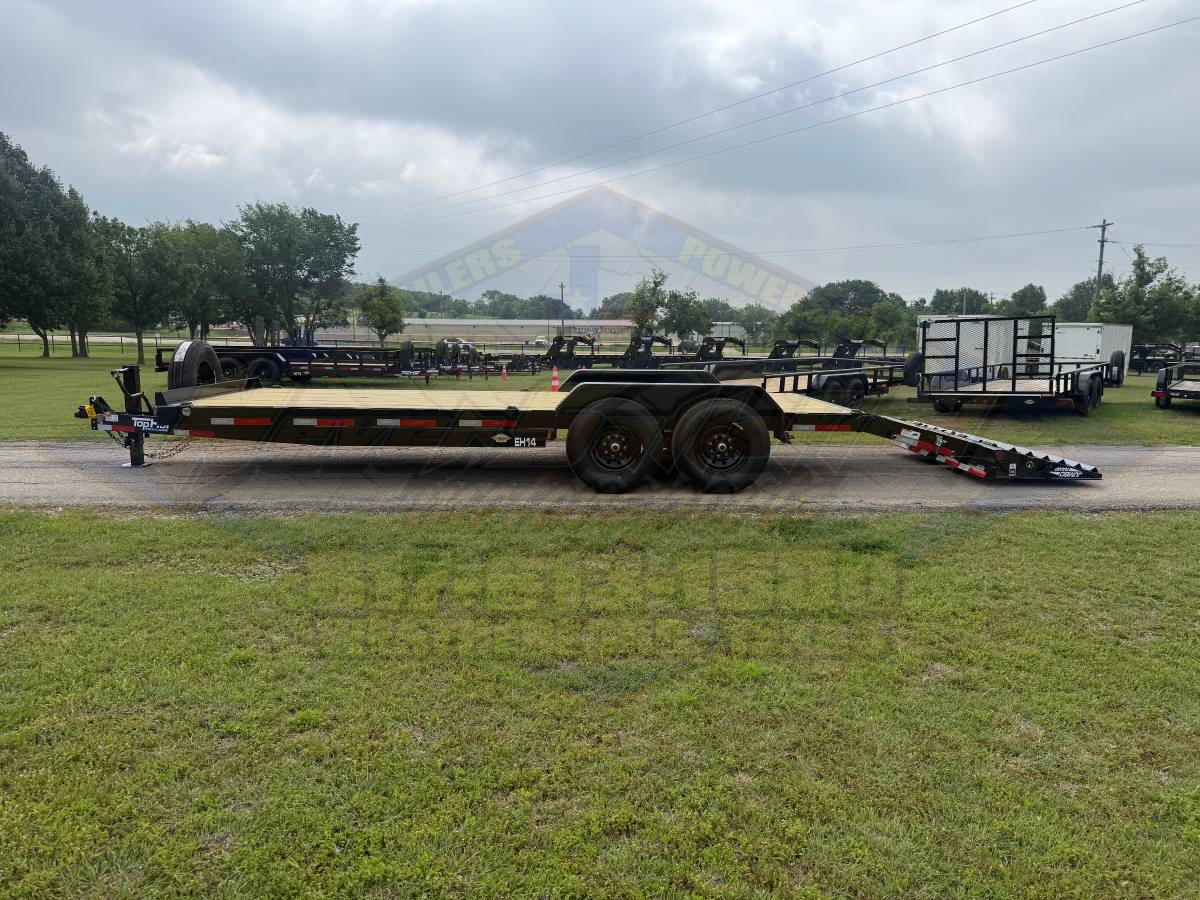

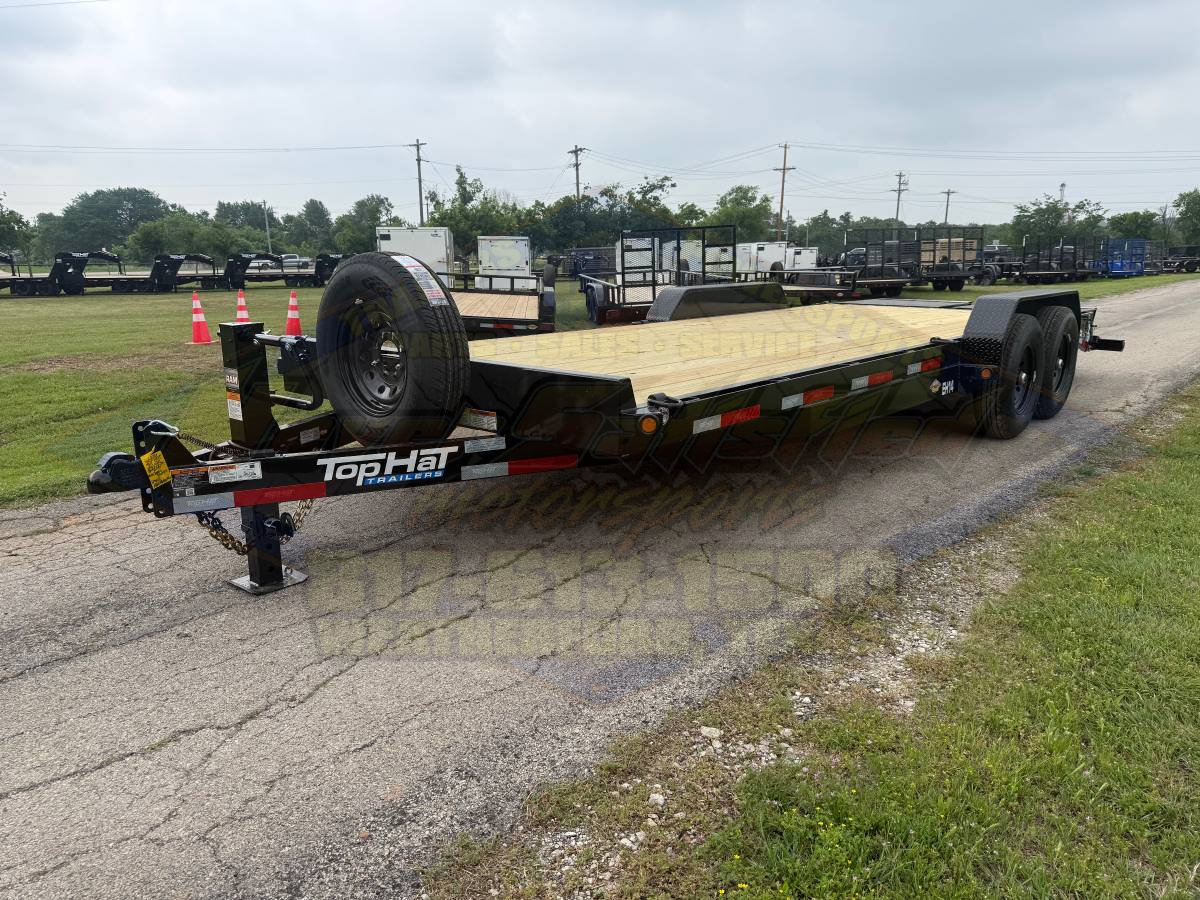

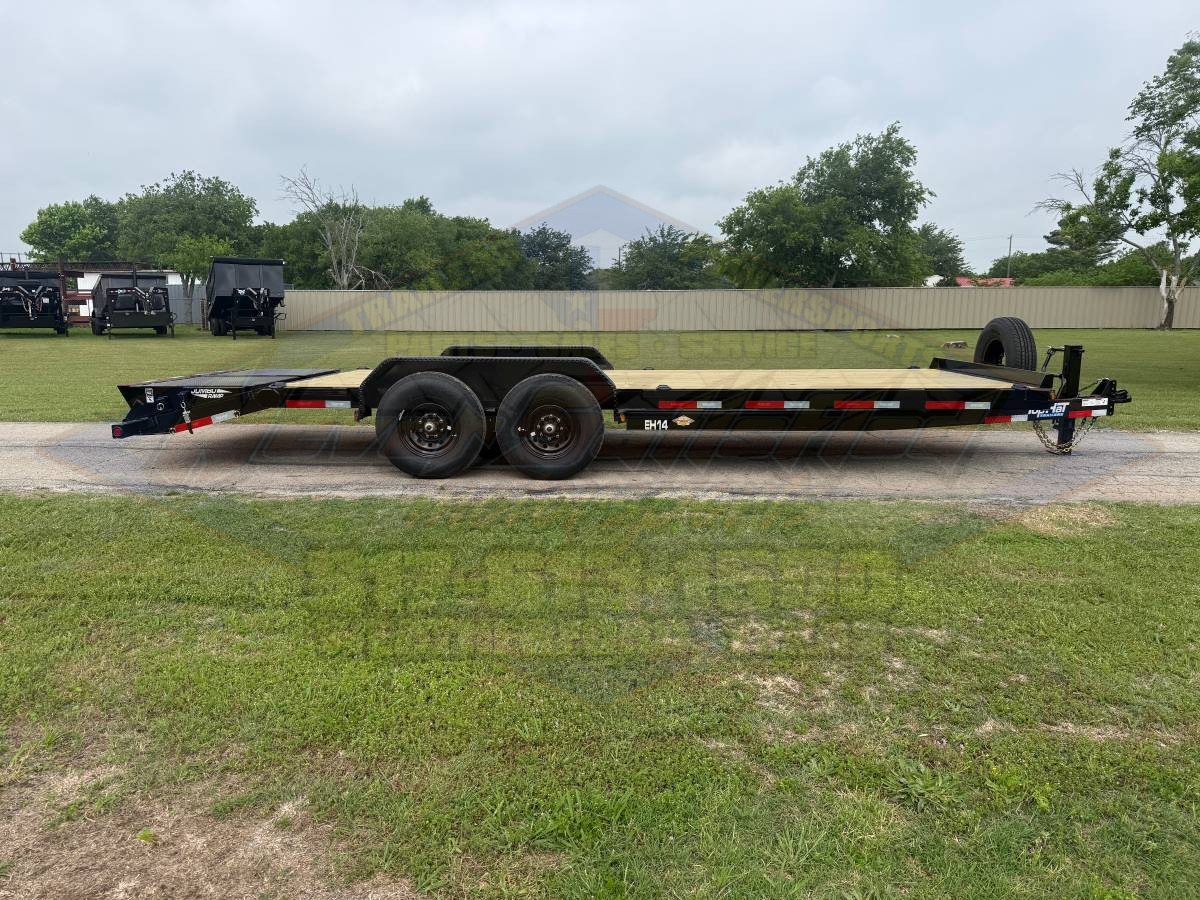

2026 TOP HAT 83″ X 22′ EQUIPMENT HAULER WITH JUMBO RAMPS AND SPARE, 14K-GVWR

Standard Equipment

• ST235/80R/16 LRE Tires on 8-Hole
• 2-7000# Dexter Axles w/Electric Brakes
• Axles 1/2 Cambered w/EZ Lube Hubs
• 2 5/16″ DEMCO Easy Latch Adjustable 5/Position Coupler
• 10000# Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Treated Pine Floor
• Break Away Unit w/Charger
• Suspension: Slipper Spring
• DOT Reflective Tape
• Sealed Flush Mount LED Lights w/Wiring Harness

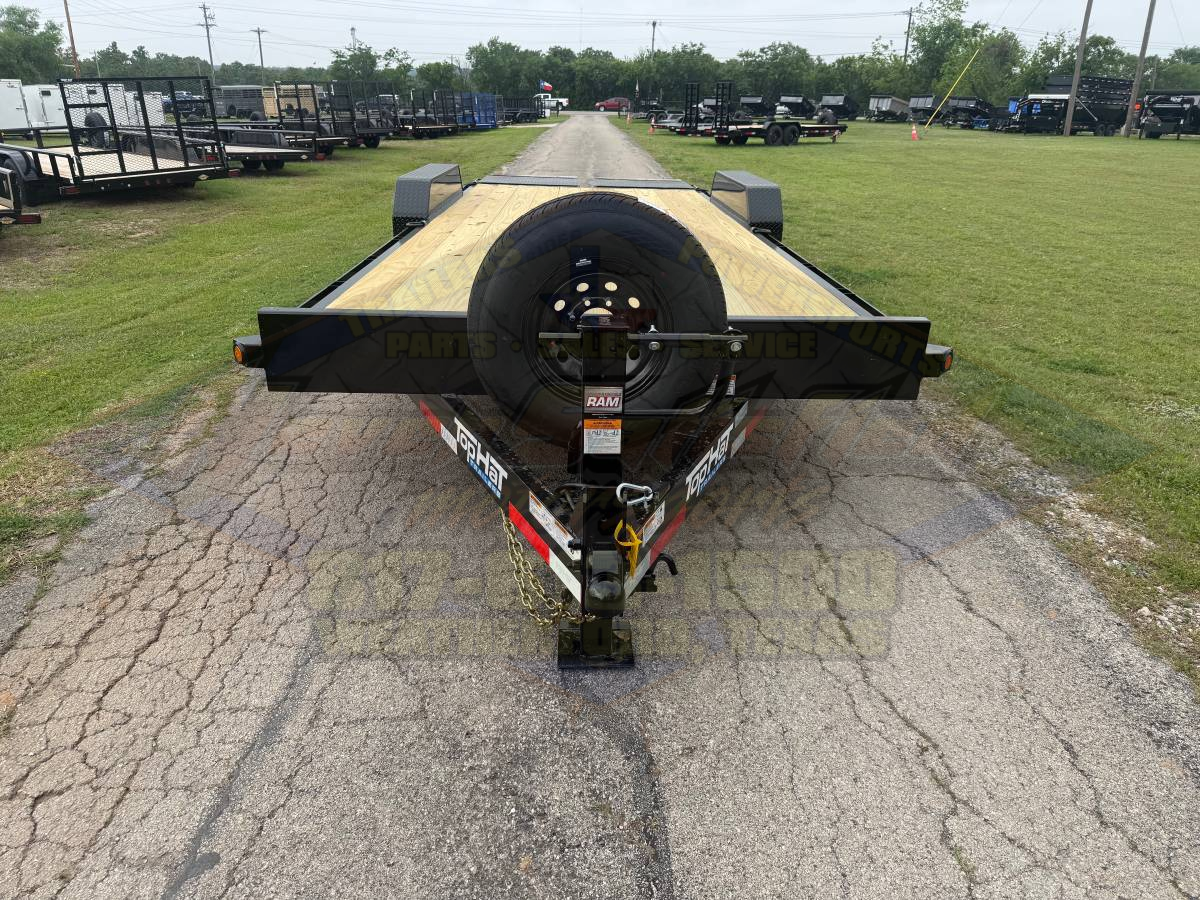

• Spare Rack
• Color: Stock

Frame Structure

• Frame & Tongue 6″ Channel Thru 24′
• Frame & Tongue 8″ Channel 26′-32′
• Front Bumper w/Side Gussets
• Crossmembers: 3″ Channel 16″ OC
• Stake Pockets w/3/8×2 Rubrail
• Crossmembers: 3″ Channel 16″ OC
• Stake Pockets w/3/8×2 Rubrail
• 5/8″ D-Rings (6)
• 2′ Treadplate Dovetail
• Flush Floor

Options

• Spare ST235/80R/16 LRE on 8-Hole
• Weld-on D-Rings 5/8″ (Each)
• HD 3/16″ Drive Over Fenders
• 3″ Square Tube Toprail (Side Option)
• Fork Rack (2-6″ Channel tubes set at 46″ Outside. Driver side)
• Fork Rack Tubing & dimensions can be custom w/additional fee.
• *5′ Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks)
• Rear Stabalizer Jack (5K Top Wind Pipe Mount)
• 5′ Fold-up Channel Ramp w/Adjustable Knees & Spring Assist

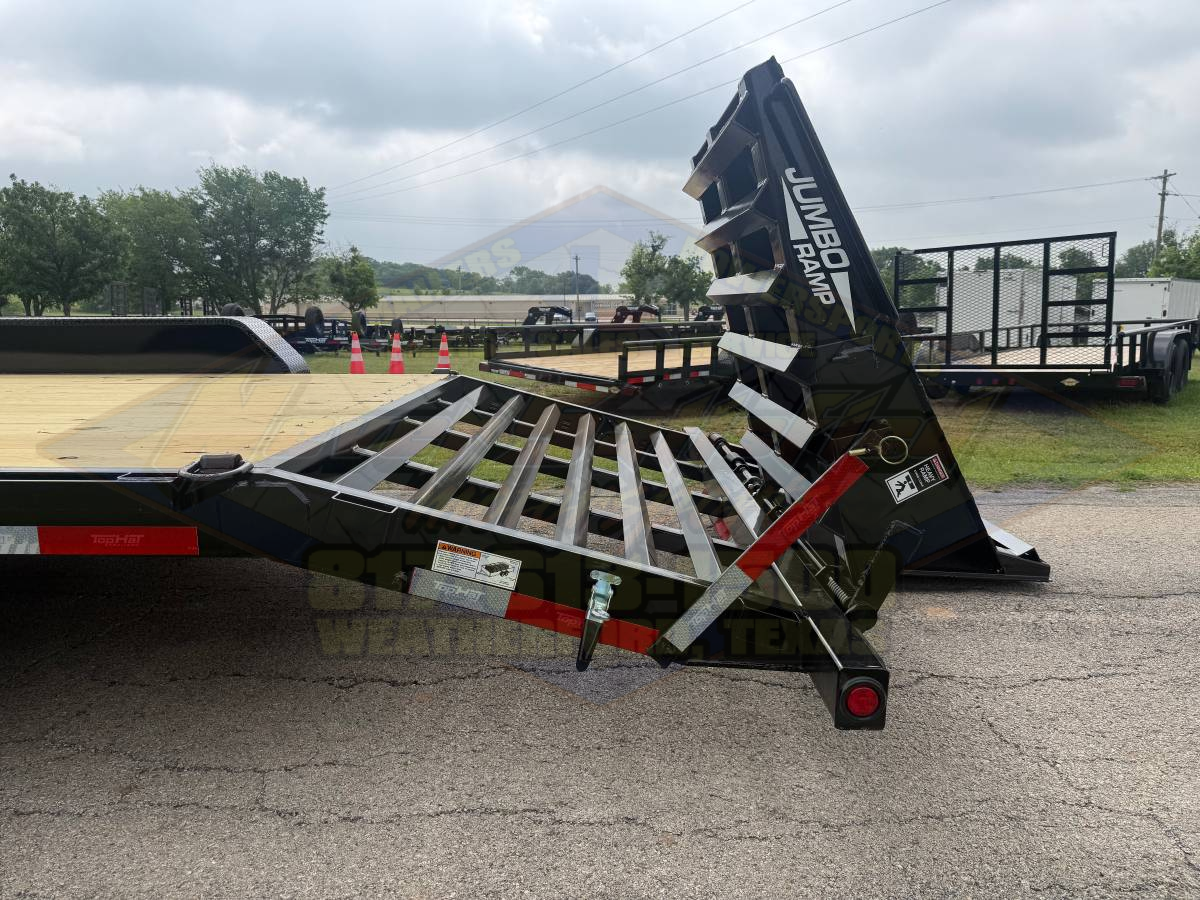

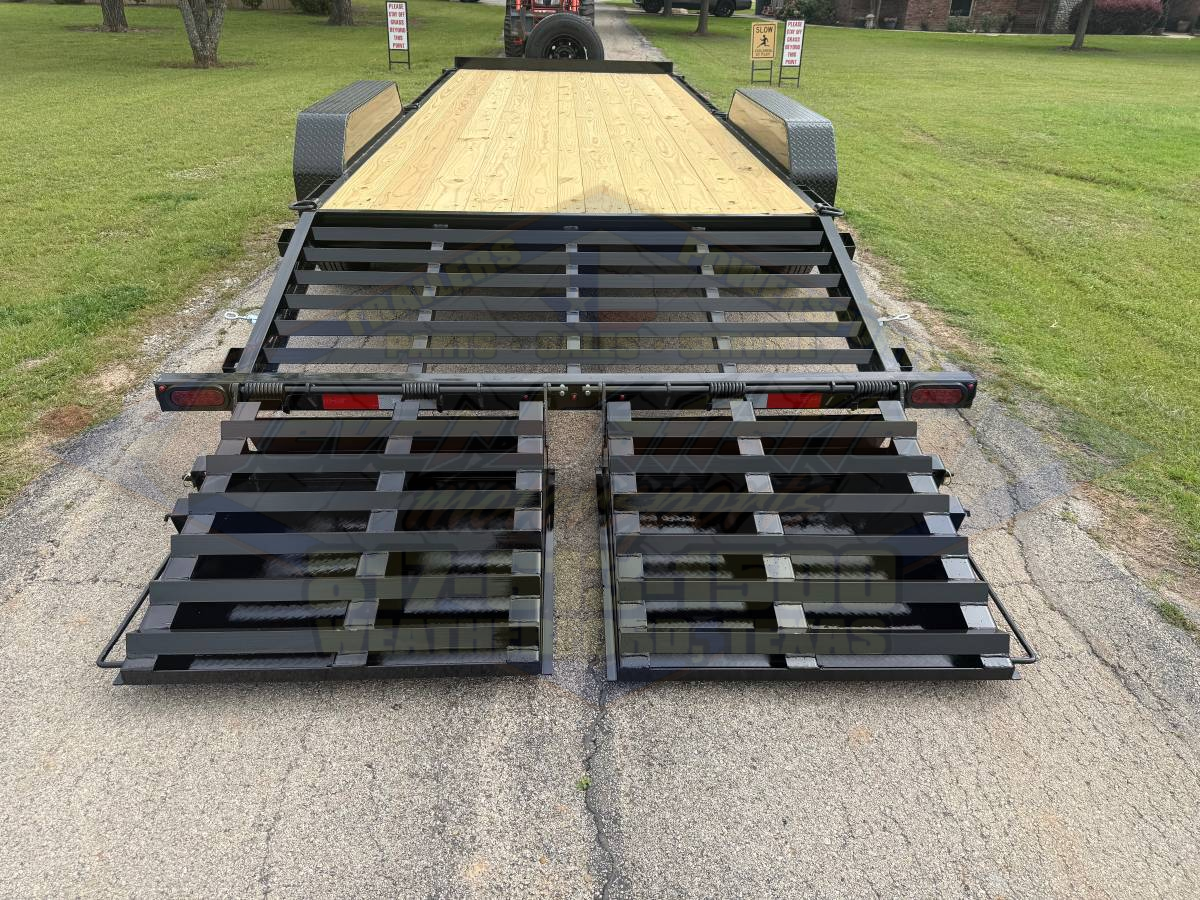

• **3′ Self Cleaning Cleated Dovetail & 3′ Mini Jumbo Spring Assist Ramps (Must be 20′ or longer)
• 5′ XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist
• Above Ramp is 24″ Wide Covered w/Expanded Metal
• 3-4′ Dovetail ILO 2′ Dovetail
• 2′ Self Cleaning Cleated Dovetail ILO 2′ Treadplate Dovetail
• *Rear Slide-N Ramps on 16′ will be 4 1/2′. Rear Slides NA on 12-14′.
• **Jumbo Ramps NA on lengths less than 20′
